X-Ray Area Dose Meter DAPro - 1
Features

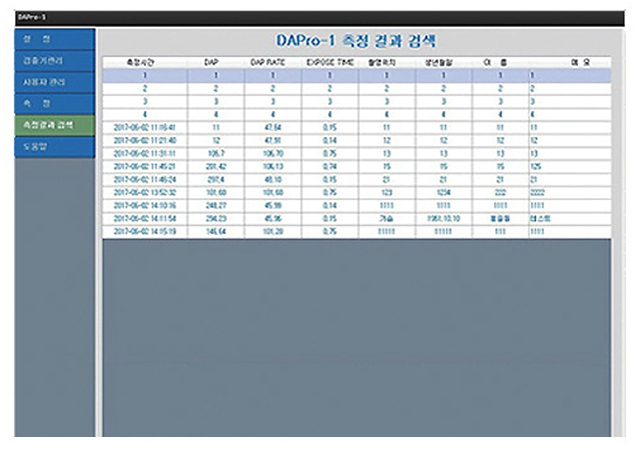

- Measurement data from DAPro-1 can be managed on a PC (maintenance and measurement value management)
Specifications
| Category | Specification |
|---|---|
| Reproducibility | <1% (at constant pressure and temperature) Energ |
| Energy Dependence | better than ±8% related to 100kV according to IEC 60580 from 40 to 150kV |
| Real-time Dose Area Product Rate |
|
| Minimum Dose Resolution | 0.01 μGy ㎡ |
| Maximum Measurable Dose Area Product | 99999999 μGy ㎡/s |
| Measurement Time | 0.01s (Minimum) |
| Attenuation | <0,5 mm Al |
| Linearity | better than ±2% |
| Active Area | 136mm X 136mm |
| Electrode Spacing | 4mm |
| Optical Transparency | ≥75% |
| Voltage Range | 15V |
| Chamber Voltage | -370V ±5% |
| AC/DC Converter |
|
| Dimensions | 183(L) x 22(H) x 153(W) |
